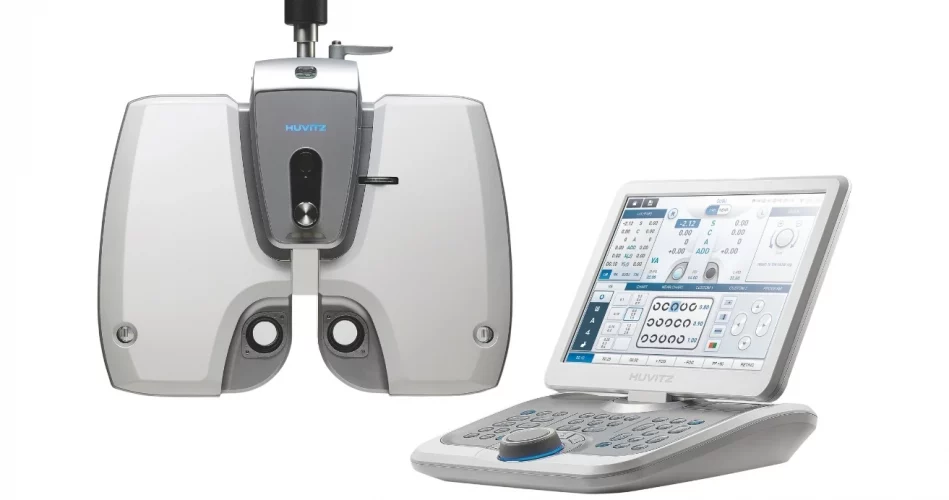

Huvitz
HDR-9000
Auto Phoropter
Phoropter offering personalized refraction testing with the 21-point method
Product details

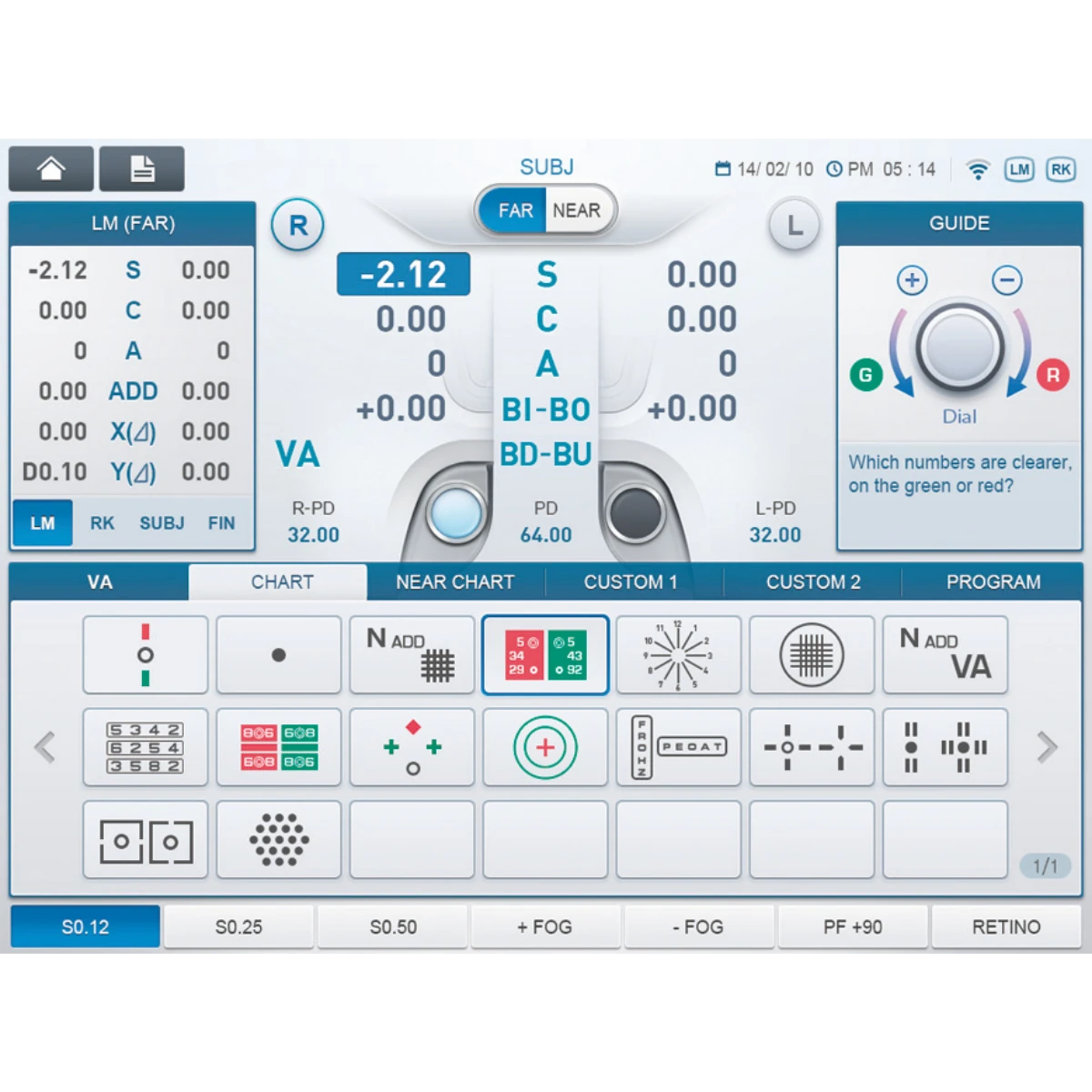

Accurate measurement using the 21 Point Exam
21 Point Exam removes complex knowledge or experience and now everyone can perform refraction easily. No more headache-explanation is needed, but all results appear on display for easy reading for both examiners and patients.

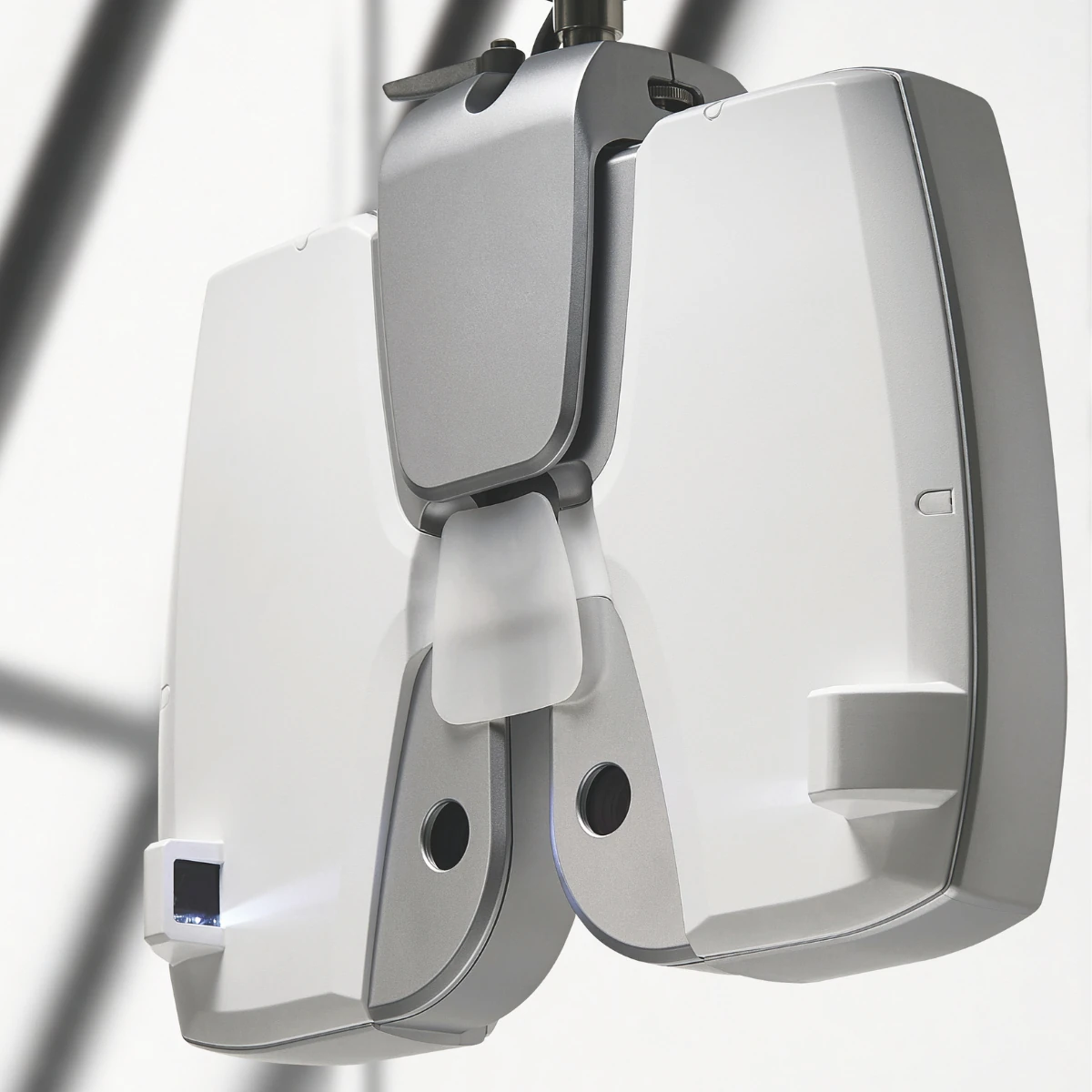

Swift measurement of astigmatism axis and astigmatism power
Dual cross cylinder lens as well as Jackson cross cylinder lens supports highly accurate exams over astigmatism axis and visual acuity. Improved speed of lens movement prevents accommodation interfering exam and guarantees accurate astigmatic exam.
Customized examinations for customers

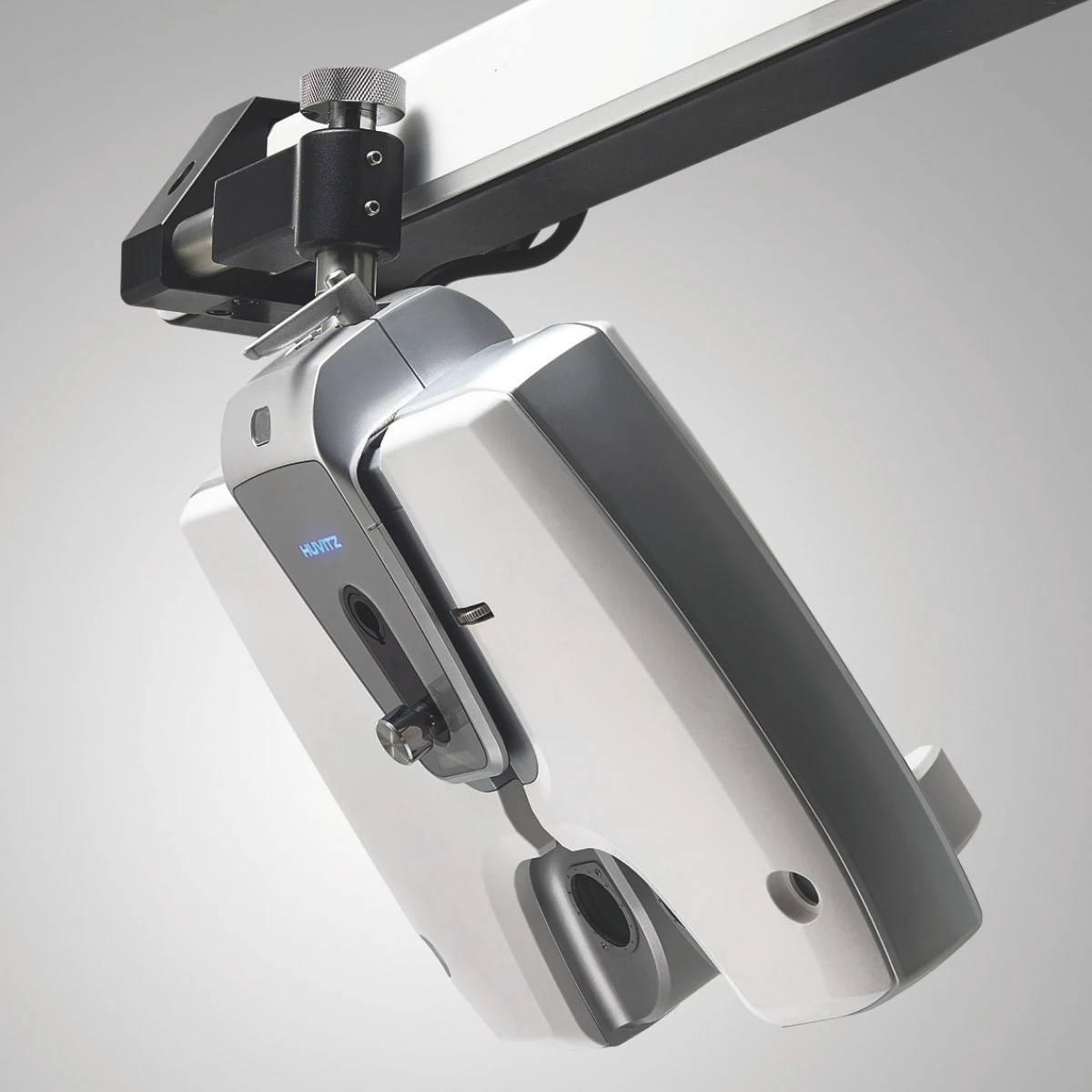

Highly advanced near vision exam is enabled with tiltable body from 0˚ to 45˚ delivering feeling of reading a book. And customized exam is available for those who have different monocular heights within adjustment +/- 3mm.
Convenient usage through Wi-Fi wireless network communication
Wireless Communication with HRK-9000A and HLM-9000 via Wi-Fi allows perfect data transmission regardless of working environment. Classic communication via RS-232 cable is available for data transmission with other models.
Specifications
1. Measurement Range
Spherical Lens
-29.00~+26.75D (Regular)
-19.00~+16.75D (During XC or Prism Tests)
(0.12/0.25/0.5/1/2/3/4D increments)
Cylinder Lens
0.00~±8.75D (0.25/0.5/1/2/3D increments)
Cylinder Axis
0˚~180˚ (1/5/15˚ increments)
PD
48~80mm (0.5/1mm increments)
Near PD : 50~74mm
Near Working Distance : 35~70cm
Rotary Prism Lens
0~20△(0.1/0.2/0.5/1/2△ increments)
Cross Cylinder
±0.25D
±0.50D
±0.25D Prism Split Lens (Dual Cross Cylinder)
Retinoscopic Lens
+1.5D, +2.0D (Measurement Distance 67cm, 50cm)
* Designs and details can be changed without prior notice for the purposes of improvement.
2. Auxiliary Lenses
Occluding Aperture
Pinhole Lens
ø2mm
Maddox Rod
Right Eye (Red, Horizontal), Left Eye (Red, Vertical)
Red /Green Filter
Right Eye (Red), Left Eye (Green)
Polarizing Filter
Right Eye (135˚, 45˚ ), Left Eye (45˚, 135˚ )
Split (Dissociation) Prism
Right Eye (6△BU)
Left Eye (10△BI : up to 5△ complement)
PD Check Lens
Fixed XC Lens
(±0.50D, with the axis fixed at 90˚ )
Visual Field
40˚ (VD=12mm)
* Designs and details can be changed without prior notice for the purposes of improvement.
3. Hardware Specification
Digital Refractor
329(W) X 113(D) X 296(H)mm, 4.20kg
Operation Panel
250(W) X 245(D) X 240(H)mm, 2.75kg (including internal printer)
Junction Box
240(W) X 141(D) X 71(H)mm, 1.24kg
Power Supply
100-240VAC~, 1.5~0.8A, 50/60Hz
*Designs and details can be changed without prior notice for the purposes of improvement.
